RCR Pro Frame Kit

Name: RCR Pro Frame Kit
Brand: Van Rysel
SKU: 5285958
Price: 3499.0 USD
Availability: InStock

Engineered for pure speed, the RCR Pro Frameset is the foundation of one of the world’s fastest bikes—trusted by the Decathlon AG2R team at the highest level of competition.

Sale price $3,499.00

Color: Smoked Black

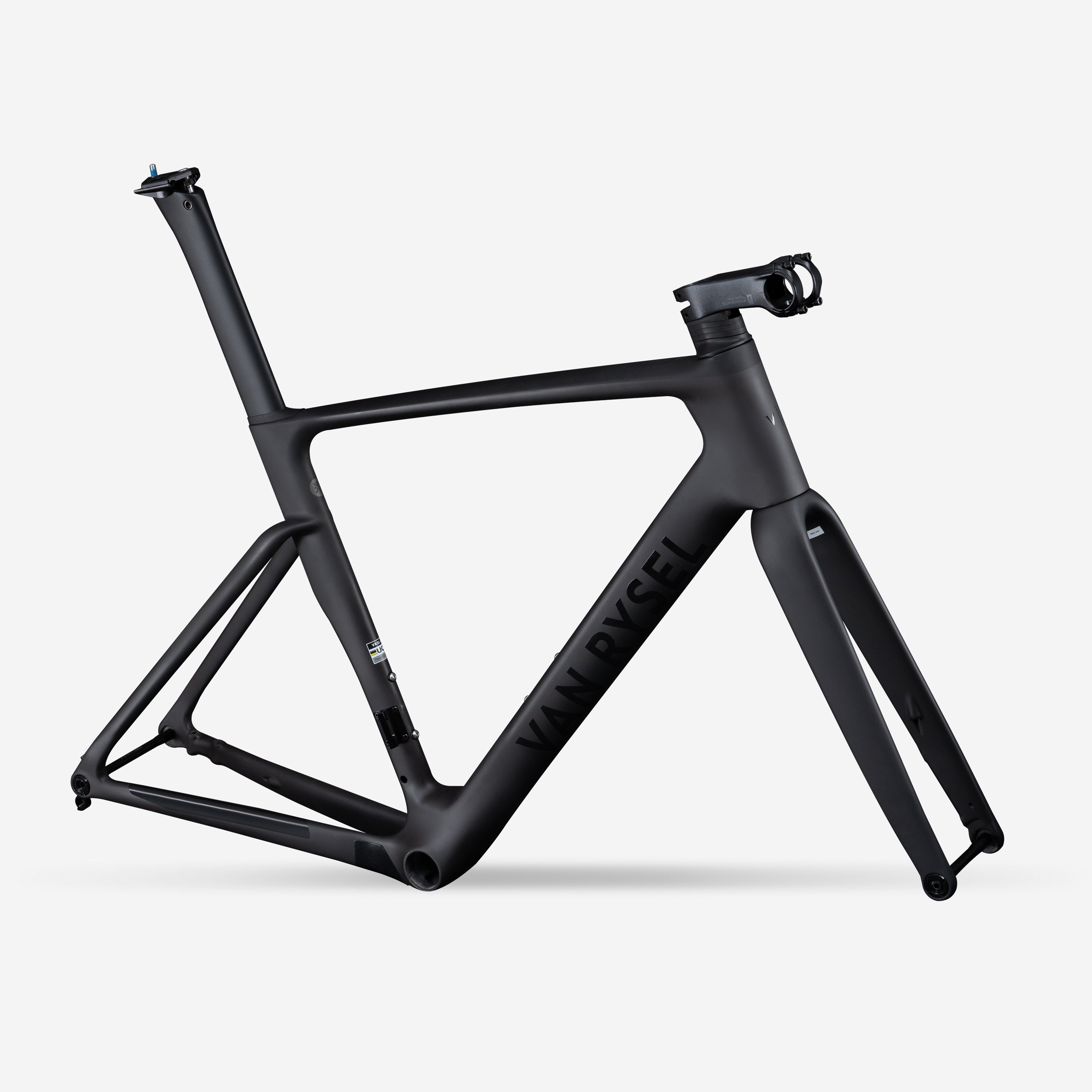

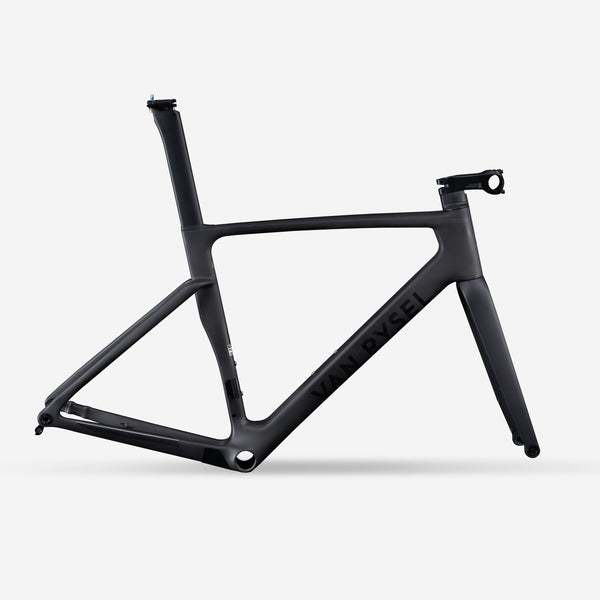

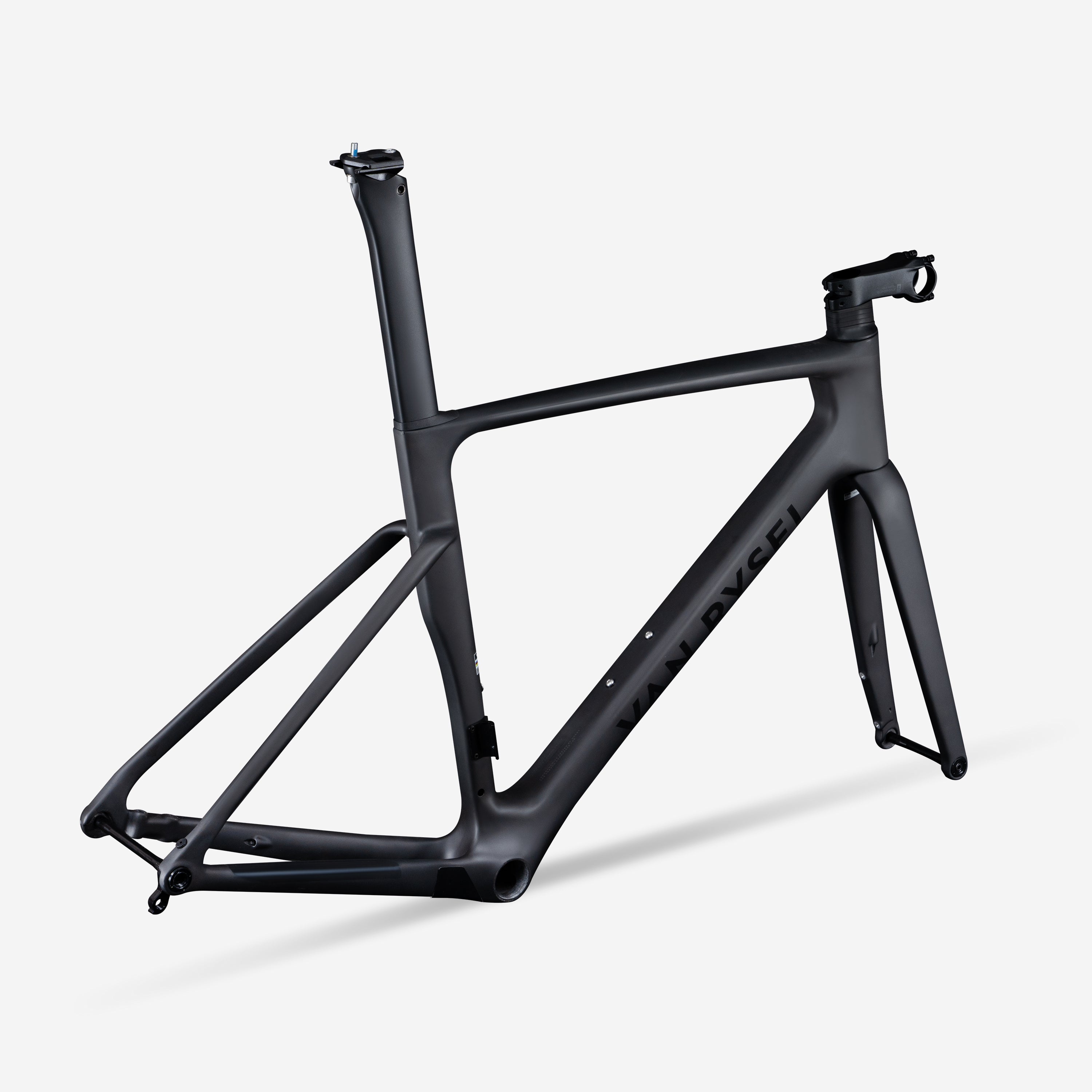

Smoked Black

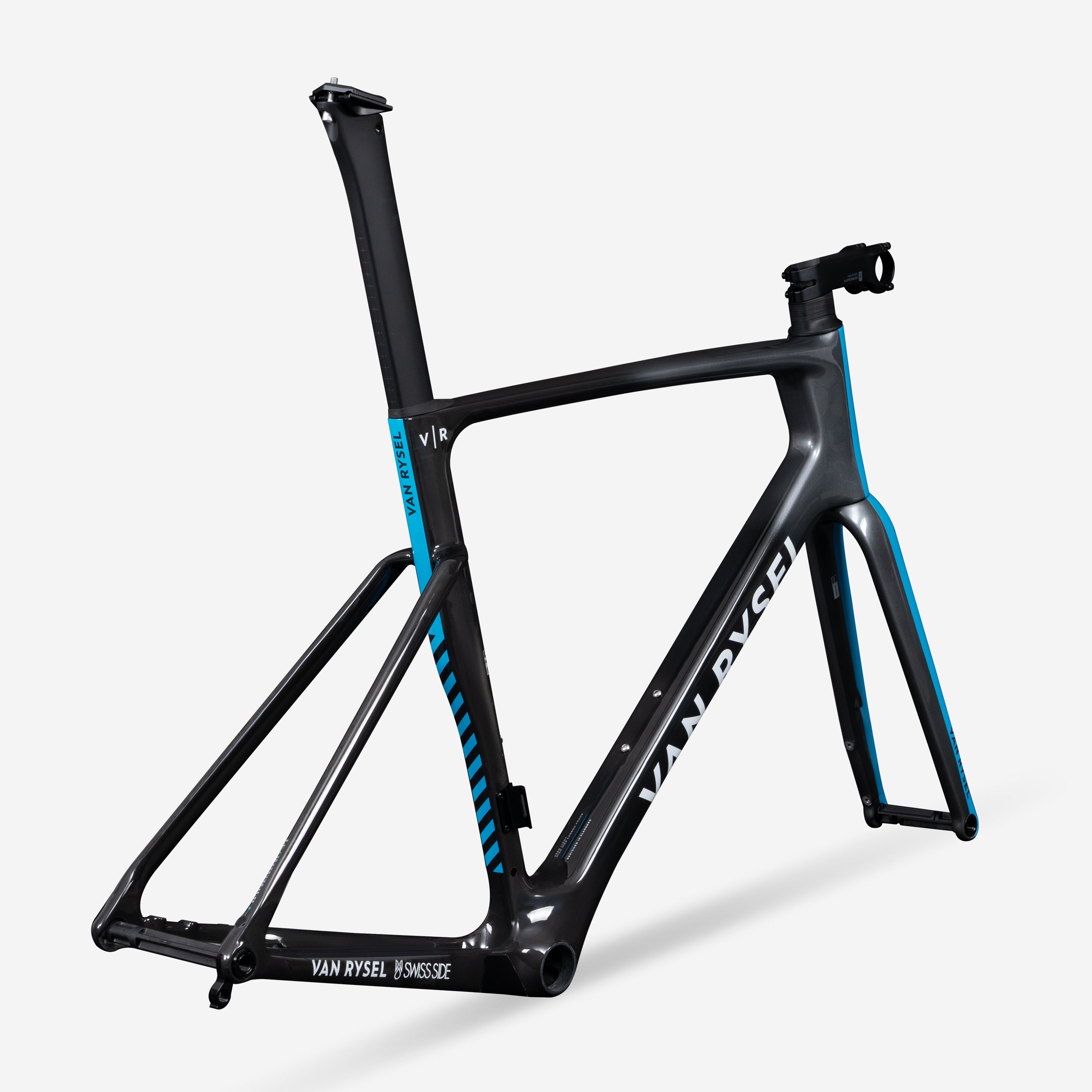

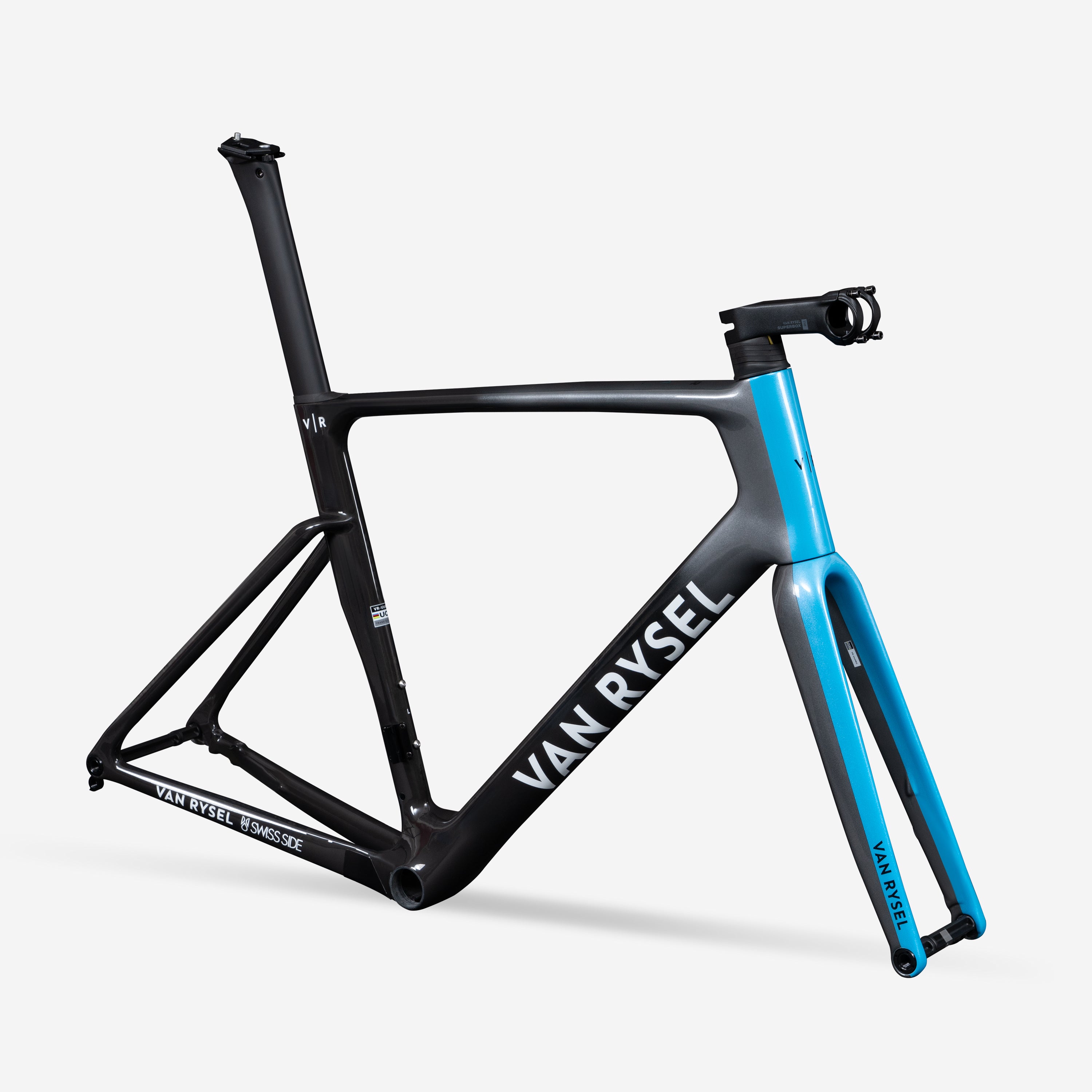

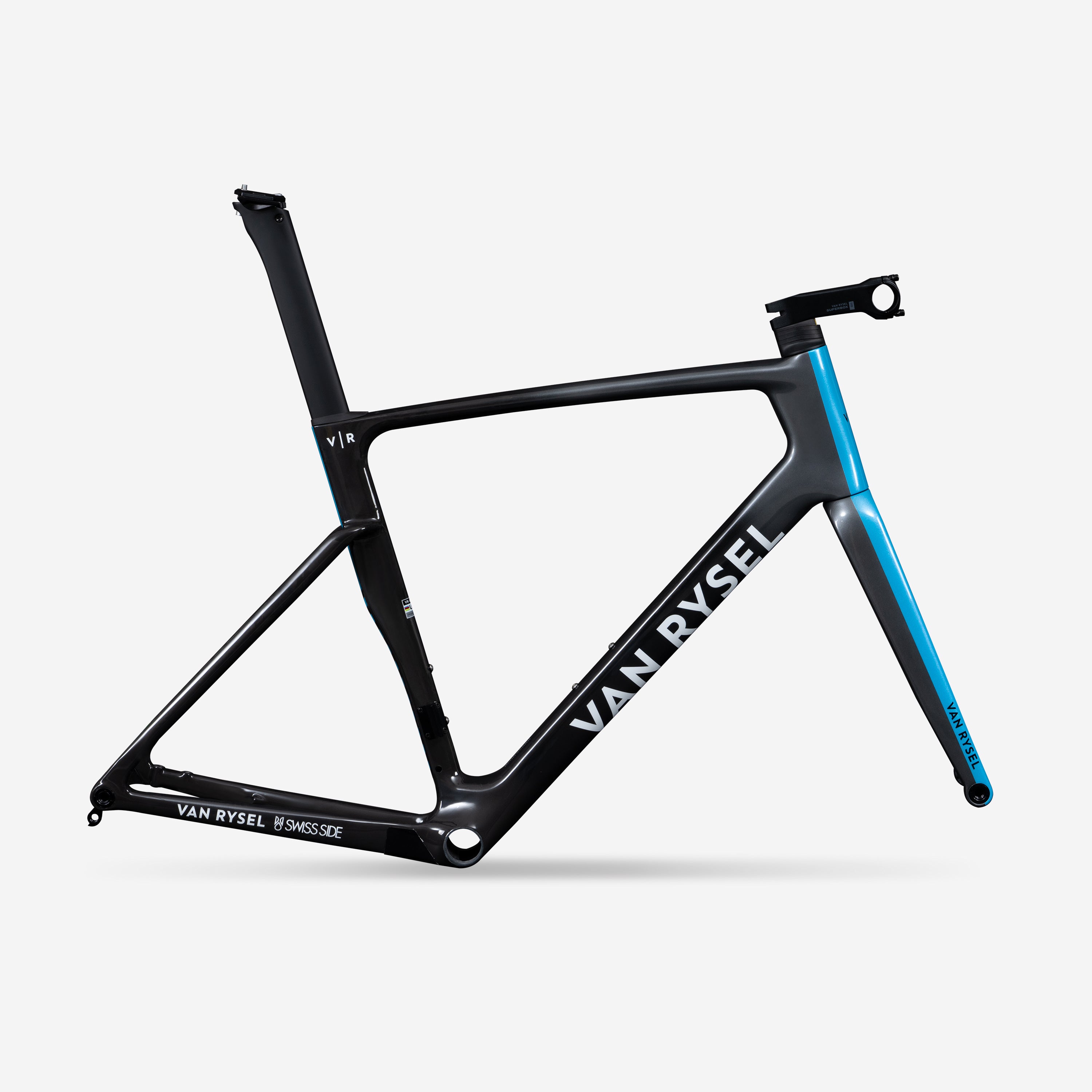

Team Edition Legacy

Size

XS

S

M

L

XL

Quantity

7 in stock

RCR Pro Super High Modulus Carbon

Product Locator by Locally

Components

Frame RCR Pro Super High Modulus Carbon

Weight 740g (raw) – 790g (painted) in Size Medium

Fork RCR Pro Super High Modulus Carbon

Stem Deda Superbox Headset & Spacers Included

Seatpost RCR -15mm carbon

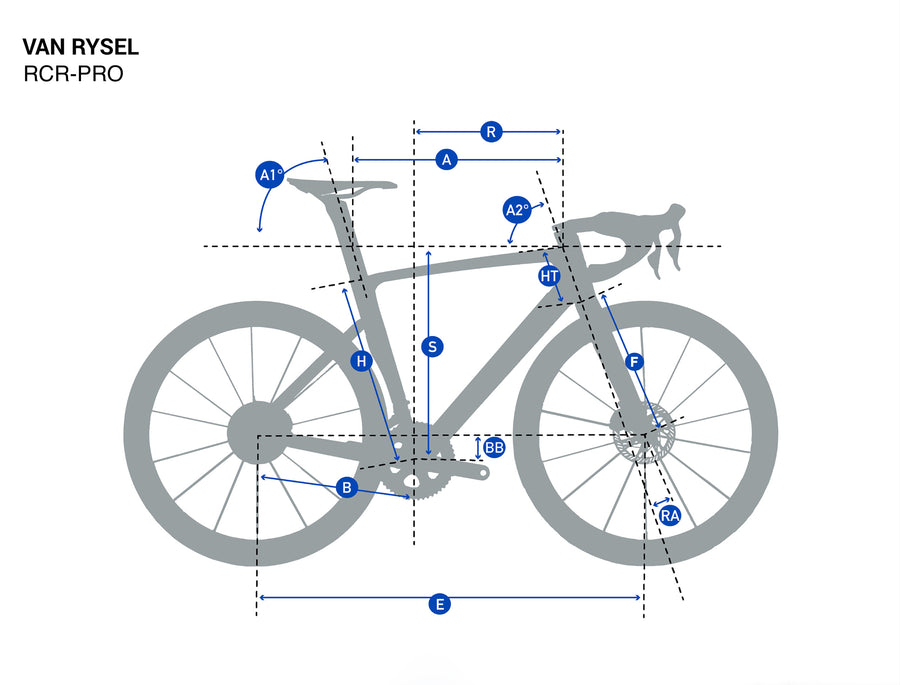

Geometry

	XS 5'1"-5'5" (155-166 cm)	S 5'5"-5'8" (166-173 cm)	M 5'8"-5'11" (173-181 cm)	L 5'11"-6'1" (181-186 cm)	XL 6'1"-6'5" (186-196 cm)
Top Tube Length (mm)	536.4	544.4	556.4	571.4	591.4
Seat Tube Length (mm)	463	473	483	513	543
Head Tube Length (mm)	114	131	147	174	199
Fork Length (mm)	367	367	367	367	367
Fork Rake (mm)	45	45	45	45	45
Bottom Bracket Drop (mm)	70	67	67	67	67
Reach (mm)	382.5	385.7	388.2	395.5	408.4
Stack (mm)	515	531	556	572	596.0
Chainstay Length (mm)	410	410	410	410	410
Wheelbase (mm)	978.2	979.1	986.0	1001.5	1021.7
Seat Tube Angle	74.0°	74.0°	73.5°	73.5°	73.5°
Head Tube Angle	72.0°	73.0°	73.0°	73.0°	73.0°

Product Info

The RCR Range
The RCR lineup is built for cyclists who refuse to compromise. Every tube’s cross-section is engineered for optimal efficiency in key wind angles (-15° to +15°).

This "lightweight aero" bike strikes the perfect balance of weight, stiffness, and aerodynamics—delivering an exceptional ride. If you're looking for a race-winning machine, the RCR is it.

RCR vs. RCR Pro: What Sets Them Apart?
The Van Rysel RCR and RCR Pro share the same aggressive race geometry, but the difference comes down to carbon technology. The RCR uses high-modulus carbon for a stiff, efficient ride that delivers speed and responsiveness. The RCR Pro takes it further with super high-modulus carbon, reinforcing key stress points while shedding weight for an even more explosive feel. Designed for elite-level racing, the RCR Pro frame is the same one used by Decathlon AG2R’s WorldTour riders.

A Closer Look at the Frame

RCR frame weight (size M, painted): 830g (1.83 lbs)
RCR Pro frame weight (size M, painted): 790g (1.74 lbs)
RCR fork weight (size M, painted): 380g (0.84 lbs)
Tire clearance: Up to 33mm

Lighter than the World Tour frameset, the RCR Pro’s raw, unpainted carbon construction saves about 50 grams—offering the same elite-level performance with a minimalist finish for those chasing every possible advantage.

Never clamp a carbon frame (top tube, seat tube, down tube) in a work stand or bike rack—carbon is rigid but vulnerable to compression.

Riding Position: Seatpost and Stem
RCR Carbon Seatpost features a -15mm offset for an aggressive riding position.

Seat Post Length by Size:

XS: 316 mm
S: 331 mm
M: 356 mm
L/XL: 406 mm

The RCR’s cockpit is designed for precise handling and easy maintenance, with an integrated headset that ensures smooth steering. The DEDA x Van Rysel Superbox EVO stem is both lightweight and stiff.

Stem lengths:

XS: 80 mm
S: 90 mm
M: 100 mm
L: 110 mm
XL: 120 mm

Which Size?
Refer to the bike frame geometry table for precise sizing.

Smaller size: More responsive and agile
Larger size: Better comfort for long distances

If you're between sizes, choose based on your riding style and fit preference. For best results, we recommend a professional bike fit.

What’s Included with Your RCR Pro Frameset

RCR Pro Carbon Frame
RCR Carbon Fork
RCR Carbon Seatpost
Deda Superbox headset, spacers & stem
Deda Superbox computer mount
Headset top cap & compression ring
Fork expander plug
Shimano & SRAM derailleur hanger
Di2 battery holder
Internal cable insulation
Thru-axles (front & rear)
Seatpost wedge & gasket
All required screws and hardware

Warranty

Frame & Fork: 5 years

Product Disclaimer
Specifications and features may change without notice. We strive for accuracy but cannot guarantee all descriptions, images, or details are error-free. Variations do not warrant modifications, exchanges, or refunds. Products may be updated or discontinued at any time. For more info, contact customer support.

Features

Aerodynamics

Co-developed with ONERA and wind tunnel-tested for optimal aerodynamics.

Lightweight

740g - 790g frame, 380g fork.

Efficiency

Super High Modulus carbon frame for maximum power transfer

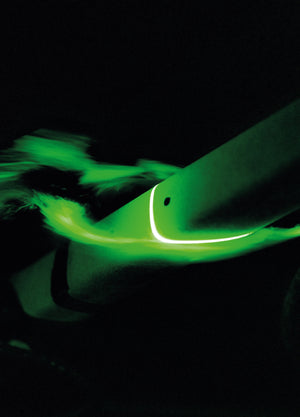

Aerodynamics

Maximizing speed isn’t just about going faster—it’s about maintaining performance with less effort. That’s why we used CFD (Computational Fluid Dynamics) optimization, in partnership with ONERA, a global leader in the field, to sculpt the most aerodynamic frame design possible.

Learn more

Lightweight Performance

Weight optimization is the second fundamental pillar of the RCR’s performance, and it has been at the core of its design.

Through topological analysis, we strategically removed material from targeted areas—not just on the frame, but across ancillary components as well.

This precision approach ensures every part is as light as possible, making the RCR a true racing machine.

Learn more

Stiffness

The RCR was built for maximum energy return, delivering an incredible sense of propulsion with every pedal stroke.

To achieve this, we went to Japan to source the world's finest carbon fibers, ensuring the highest level of performance.

By carefully positioning these fibers in key areas, we enhanced stiffness, allowing the RCR to channel every ounce of your effort like no other bike before it.
